Geeetech Prusa i3 Hardwareupgrade

This repositiory includes many hardwareupgrades done by me to improve the overall print quality. You can preview all models directly on github in the stl folder.

Z-Axis Sled

The z-axis sled got complely reworked.

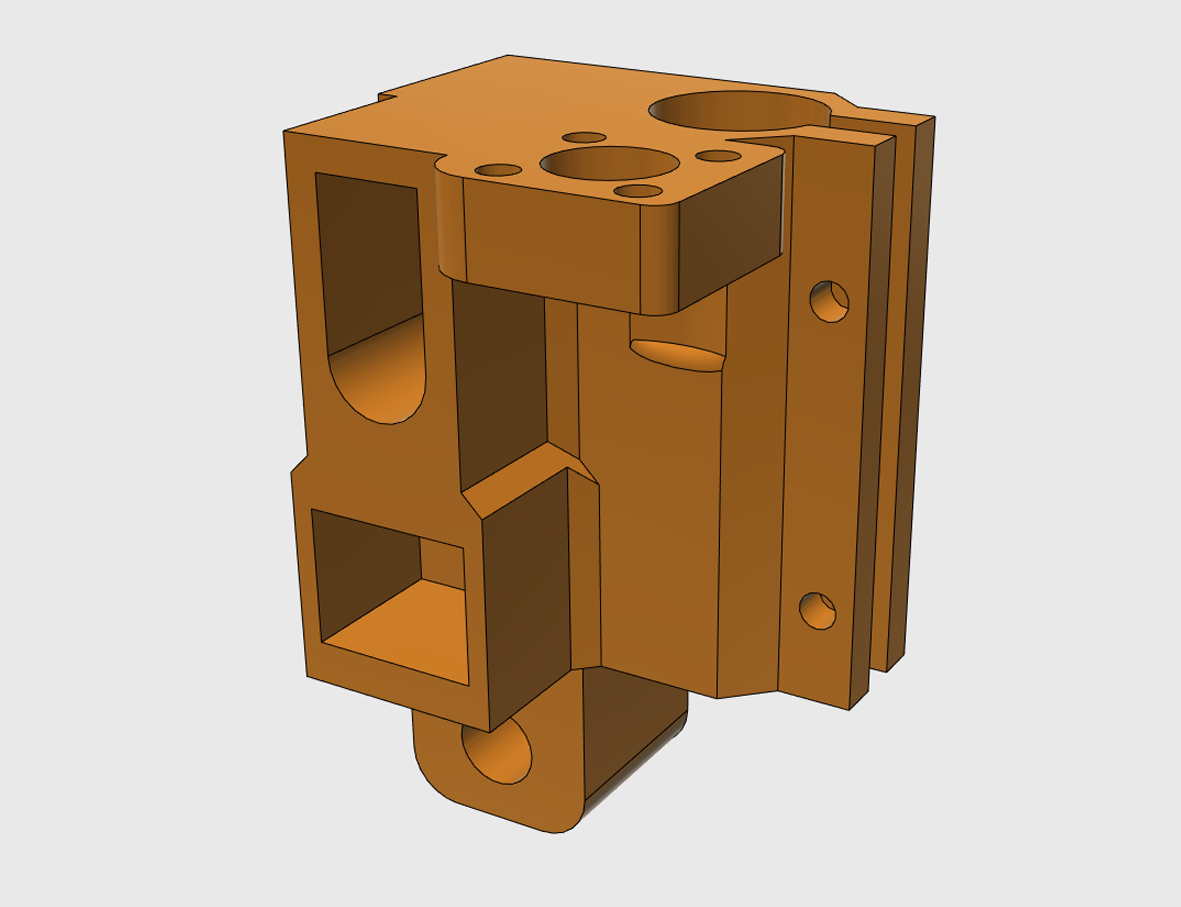

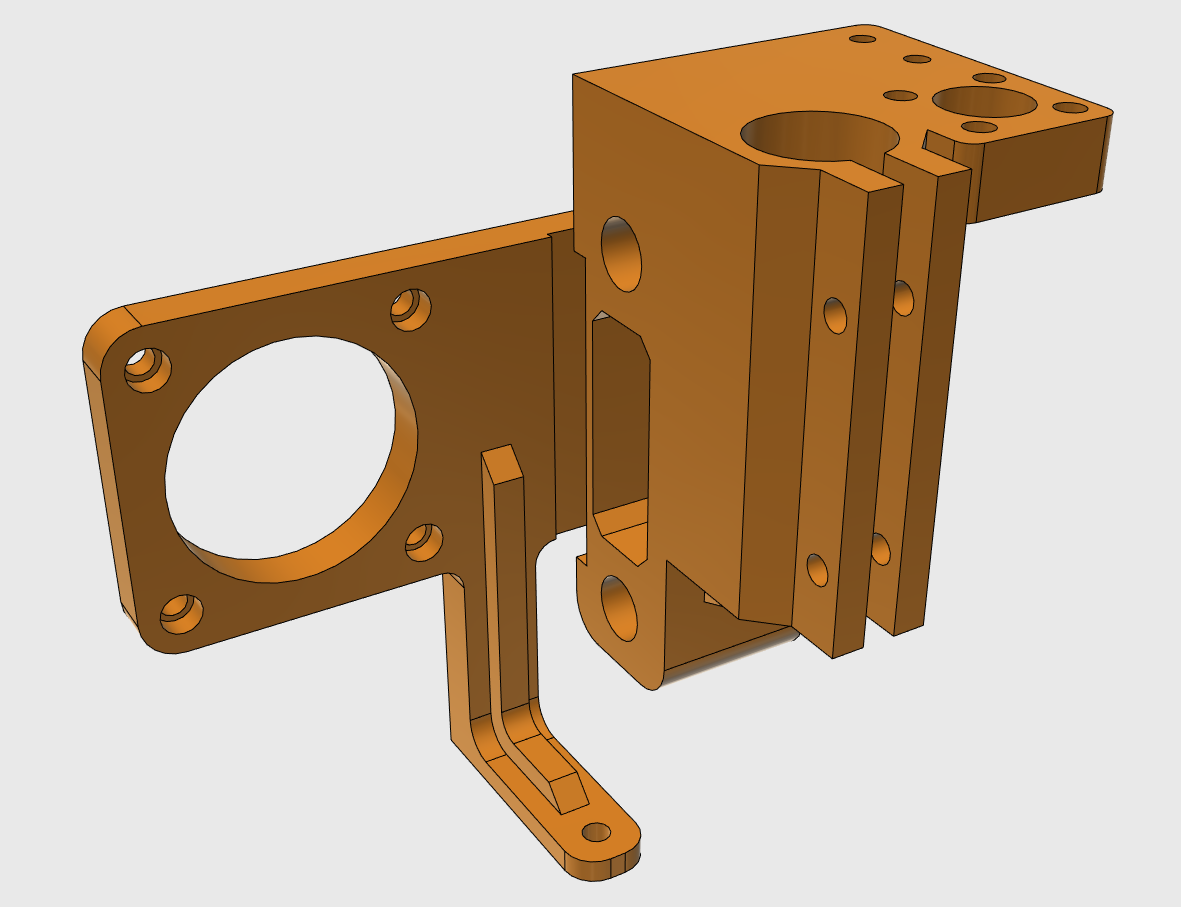

(The left vertical axis)

(The right vertical axis)

Z-Axis Rotary Bearing Holder

To further reduce the sound level, two bearings were added. Those also reduce the wear on the rod.

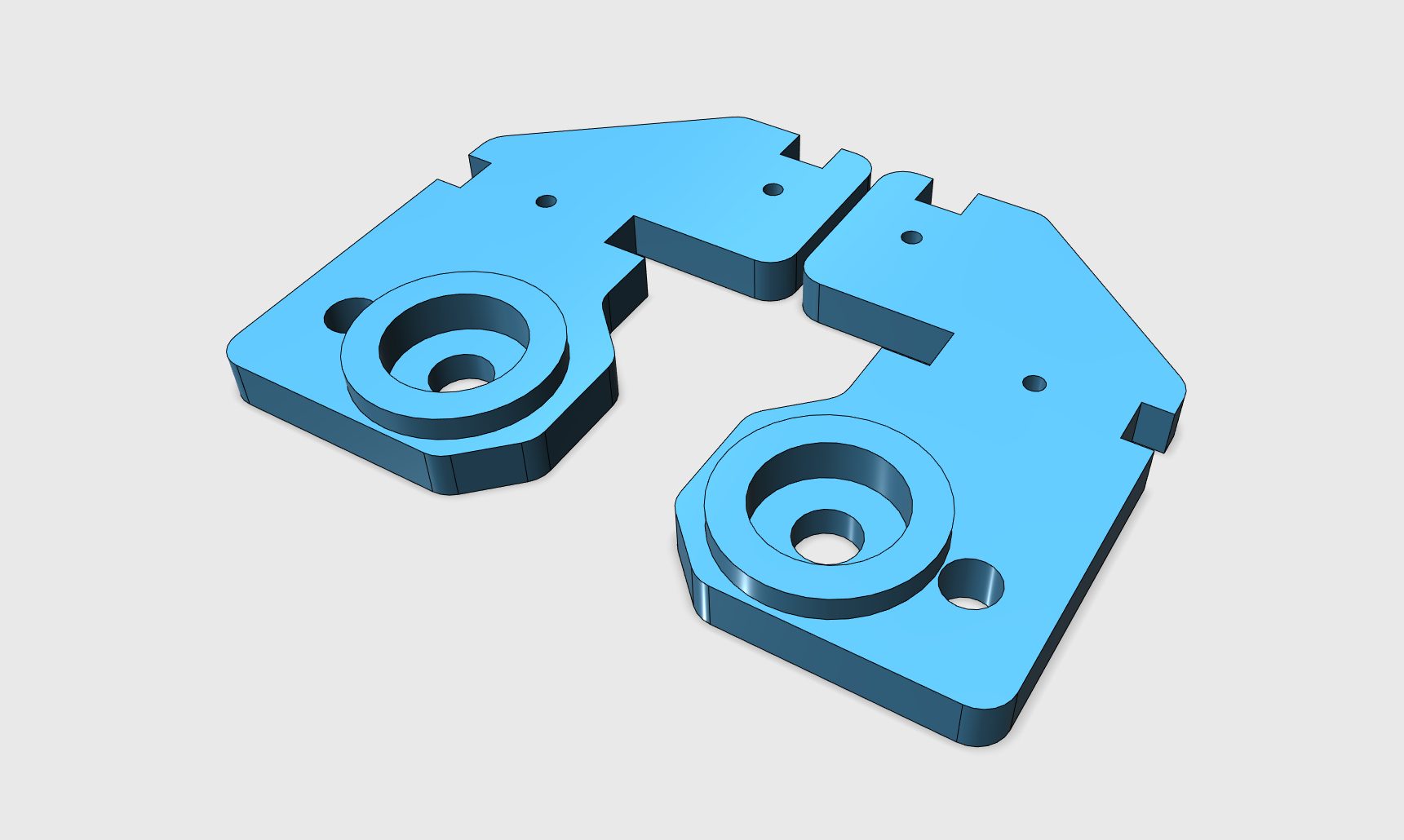

(Bearing holder)

Bowden Extruder

My design is based on this one by Tech2C but was heavily modified.

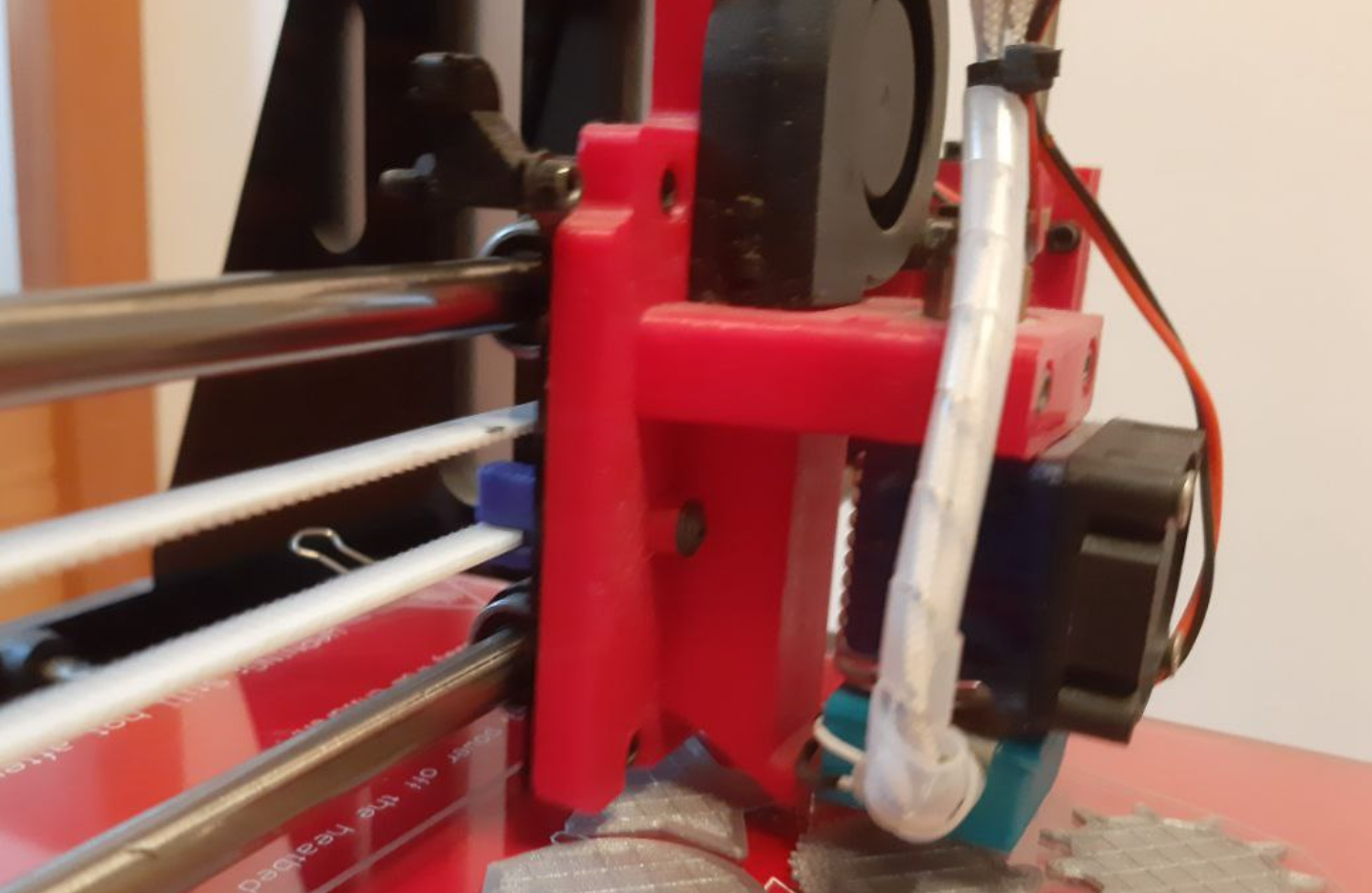

(The bowden extruder)
